Flame Retardant Cable Glands (A-Type)

? Thread Type :G ( PF ) and NPT.? Material Data :Flame-Retardant Nylon PA 66 ( Flammability UL 94V-0 ) for A.C.E,F parts ;Flame-Retardant & Weather-Resistance Rubbers for B.D parts.UV ( Irradiance 3...

在線咨詢

? Thread Type :G ( PF ) and NPT.

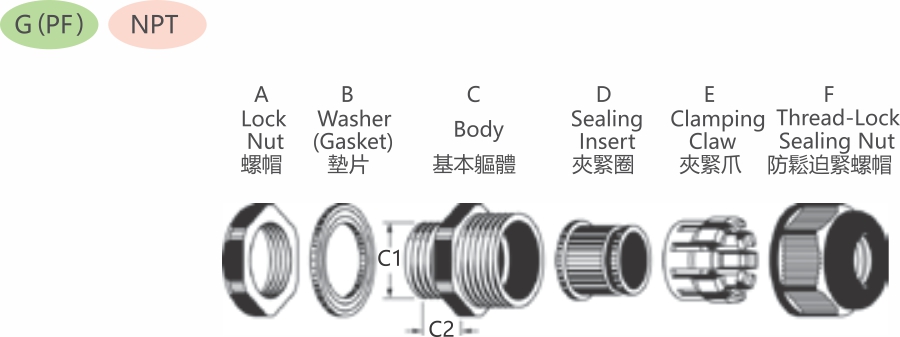

? Material Data :Flame-Retardant Nylon PA 66 ( Flammability UL 94V-0 ) for A.C.E,F parts ;

Flame-Retardant & Weather-Resistance Rubbers for B.D parts.

UV ( Irradiance 340 nm ) exposure is performed by using a xenon-arc weatherometer for 1000 hours and intermittent exposure to water spray.Our black cable glands are suitable for outdoor use have been subjected to UV light exposure and water immersion same as UL746C (f1) rating.

? IP Protection :IP68 - 5 bar.

? Working Temp. :- 40 °C to 105 °C ( - 40 °F to 221 °F ).  Short-Term to 160 °C ( 320 °F ).

? Application :The cable gland is assembled with high quality flame-retardant polyamide body and sealing rubbers which is mainly designed for human & property protection. In addition, this connector accompanied with an unique design from Yongcun’s special sealing & clamping system provides strong strain relief, waterproof and airtight abilities over the entire cable range, which of fers an integrated performance on their excellent functional properties suitably for used in outdoor / indoor cable entry applications with the higher requirements of flame-protection in public buildings, office, store houses, undergrounds, tunnels, aeration systems, ships and supply installations, etc.

 Contact us for designing & ordering different sealing hole patterns with varying diameters & other extended gland sizes. ( Sealing Inserts are not sold separately )

 Yongcun sealing inserts are available in split versions for mounting wires w th pre-assembled terminals or connectors. ( Minimum order quantity is required )

 For product property & chemical resistance informations, please click here for reference.

 The Washer ( Gasket ) and Lock Nut are all included in each cable gland, this saves additional ordering work and storage locations.
