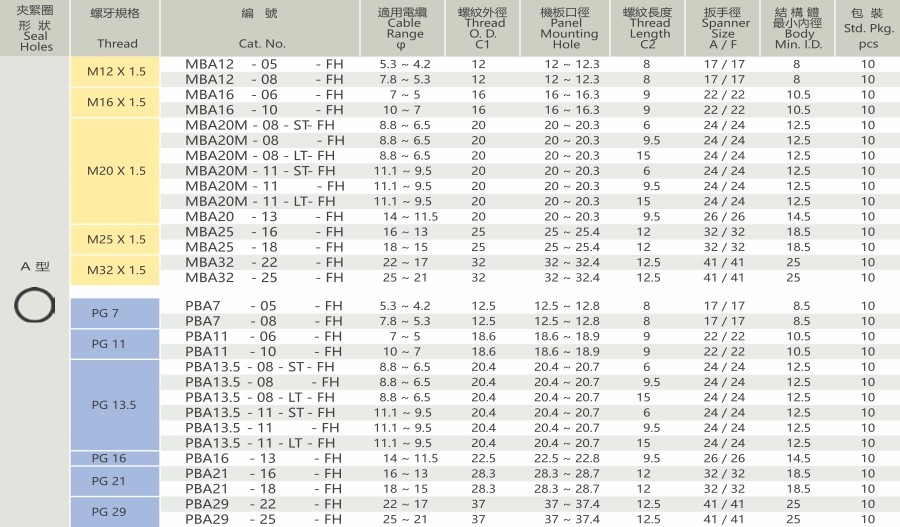

? Thread Type:Metric and PG.

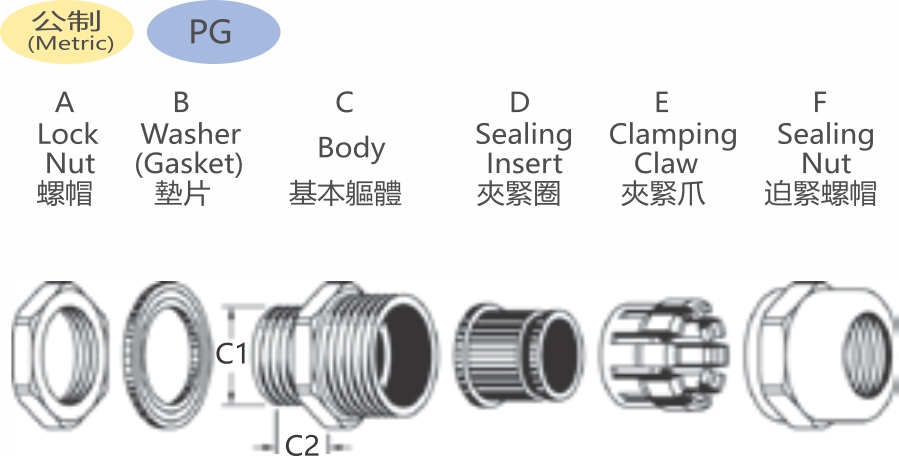

? Material Data : Brass nickel-plated ( JIS C3604 / DIN CuZn39Pb3 / ASTM C37800 ) for A.C.F parts  ;  Special heat resistance polyamide for E part.

Special heat, weather, oil and chemical resistance Viton? rubbers for B.D parts.

? IP Protection :IP68 - 5 bar.

? Working Temp :- 20 °C to 150 °C ( - 4 °F to 302 °F )  ;  intermittent to approx. 180 °C ( 356 °F ).

? Application :The combination of high quality nickel-plated brass body and the special Viton? sealing fluoroelastomer { well known for its excellent anti heat to 200°C ( 392°F ) without aging effect after a long period and resistant against aggressive fuels / chemicals } provides integrated performance to offering the highest working temperatures and mechanical properties ( high heat, weather, impact, chemical and oil resistance, etc ). In addition,the gland with Yongcun’s perfect clamping design provides the outstanding strain relief power & watertight performance over the entire cable range to be the best cable entry system to meet the high heat environment and the specific requirements such in automotive technology and chemical / oil industry, etc.

 Contact us for designing & ordering different sealing hole patterns with varying diameters & other extended gland sizes. ( Sealing Inserts are not sold separately )

 Yongcun sealing inserts are available in split versions for mounting wires w th pre-assembled terminals or connectors. ( Minimum order quantity is required )

 For product property & chemical resistance informations, please click here for reference.

 The Washer ( Gasket ) and Lock Nut are all included in each cable gland, this saves additional ordering work and storage locations.
