? Thread Type:Metric and PG.

? Material Data : Standard in Stainless Steel A2 ( DIN 1.4305 / AISI 303 ) for A.C.F parts  ;  Contact us for ordering Stainless Steel A4 ( 1.4404 / AISI 316L ).

Special heat resistance polyamide for E part  ;  Special heat, weather, oil and chemical resistance Viton? rubbers for B.D parts.

? IP Protection :IP68 - 5 bar.

? Working Temp :- 20 °C to 150 °C ( - 4 °F to 302 °F )  ;  intermittent to approx. 180 °C ( 356 °F ).

? Application :With the highest requirements for stability & extremely aggressive media resistance under toughest conditions, the higher strength & rustproof stainless steel with the special Viton? sealing fluoroelastomer { well known for its outstanding heat resistance to 200°C ( 392°F ) without any aging effect after a long period and resistant against aggressive fuels / chemicals } are adopted for building this toughest cable gland to offering the best durability in severe heat, high impact, chemical and oil environments. In addition, the gland with Yongcun’s perfect clamping design provides outstanding strain relief force & watertight performance over the entire cable range to be the unmatched long life cable entry system for outdoor / indoor applications in the requirements of aggressive media resistance such in chemical / pharmaceutical industry , oil / petrochemical industry and offshore, etc.

 Contact us for designing & ordering different sealing hole patterns with varying diameters & other extended gland sizes. ( Sealing Inserts are not sold separately )

 Yongcun sealing inserts are available in split versions for mounting wires w th pre-assembled terminals or connectors. ( Minimum order quantity is required )

 For product property & chemical resistance informations, please click here for reference.

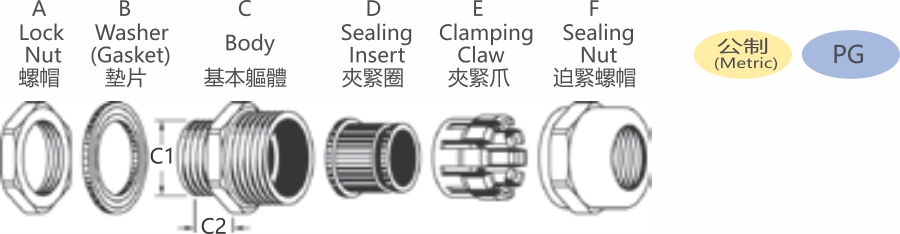

 The Washer ( Gasket ) and Lock Nut are all included in each cable gland, this saves additional ordering work and storage locations.
