EMC Brass Cable Glands

? Thread Type:Metric and PG.? Material Data : Brass nickel-plated ( JIS C3604 / DIN CuZn39Pb3 / ASTM C37800 ) for A.C.C1.F parts ; Nylon PA 66 for E part.Weather-resistant EPDM rubbers for B.D parts...

在線咨詢

? Thread Type:Metric and PG.

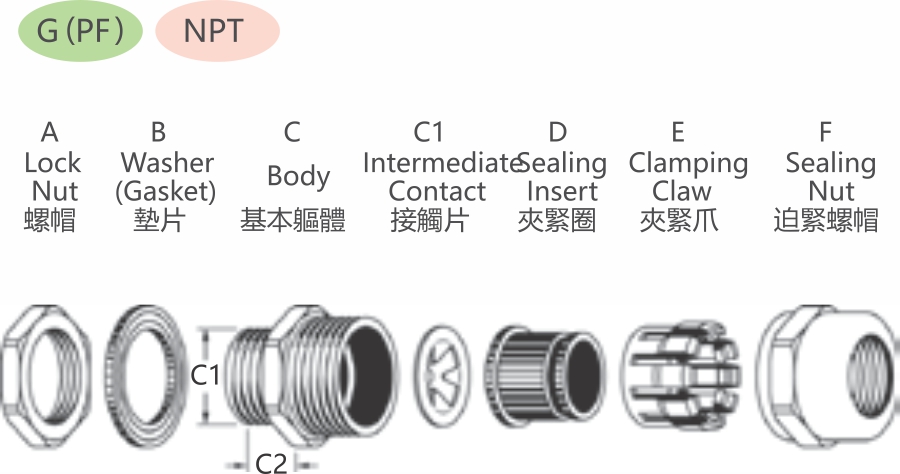

? Material Data : Brass nickel-plated ( JIS C3604 / DIN CuZn39Pb3 / ASTM C37800 ) for A.C.C1.F parts  ;  Nylon PA 66 for E part.

Weather-resistant EPDM rubbers for B.D parts.  ( NBR rubber is optional for oil-resistance applications )

? IP Protection :IP68 - 5 bar.

? Working Temp :-Brass nickel-plated ( JIS C3604 / DIN CuZn39Pb3 / ASTM C37800 ) for A.C.C1.F parts  ;  Nylon PA 66 for E part.

 Contact us for designing & ordering different sealing hole patterns with varying diameters & other extended gland sizes. ( Sealing Inserts are not sold separately )

 Yongcun sealing inserts are available in split versions for mounting wires w th pre-assembled terminals or connectors. ( Minimum order quantity is required )

 The Washer ( Gasket ) and Lock Nut are all included in each cable gland, this saves additional ordering work and storage locations.


 The Washer ( Gasket ) and Lock Nut are all included in each cable gland, this saves additional ordering work and storage locations.

              With the hichest requirements for staility & extremely flameproof protection under toucher conditions, the higher strenath & rustproof stainiesssteel with the special flame-retardant gaskets & clamping units are adopted for producing these special cable glands to protect them fromcorrosion and flame. In addition, the unique design from Yongcuns special sealing & clamping system provides strong strain relief, waterprof andairtight abilities over the entire cable range. This special safety gland provides unmatched & integrated performance on the outstandingmechanical properties with the highest flameproof protection which is suitable for used in outdoor / indoor cable entry applications with higherauman & property protection in pubic buidings. store houses. underarounds. tunnels. aeration svstems. ships and supplv nstallations. etc

 The Washer ( Gasket ) and Lock Nut are all included in each cable gland, this saves additional ordering work and storage locations.
