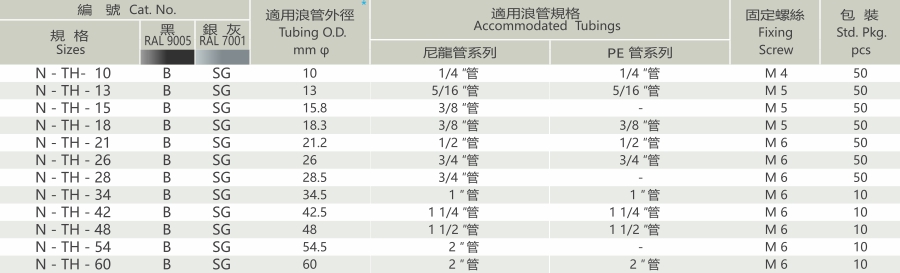

Tubing Holders
? Material Data :UL- certified Nylon PA 66 ( Flammability UL 94V-2 ).? Working Temp. :- 40 °C to 105 °C ( - 40 °F to 221 °F ). Short-Term to 160 °C ( 320 °F ).? Application :The refined polya...
? Material Data :UL- certified Nylon PA 66 ( Flammability UL 94V-2 ).
? Working Temp. :- 40 °C to 105 °C ( - 40 °F to 221 °F ). Short-Term to 160 °C ( 320 °F ).
? Application :The refined polyamide tubing holders are easily used with any common corrugated conduits and tubings vertically or horizontally, to secure tubings in place. This product series can mount the common sizes of conduits ( 1/4” - 2” ) with strong fastening performance for outdoor / indoor applications.
Recommended distance between brackets at intervals not greater than 3 feet ( 914 mm ) as required by Article 351-27 of 1996 NEC.
For European Standard EN 50343 : 2003, recommended distance between brackets at intervals not greater than 300 mm ( Horizontal wiring ) & 500 mm ( Vertical wiring ).
