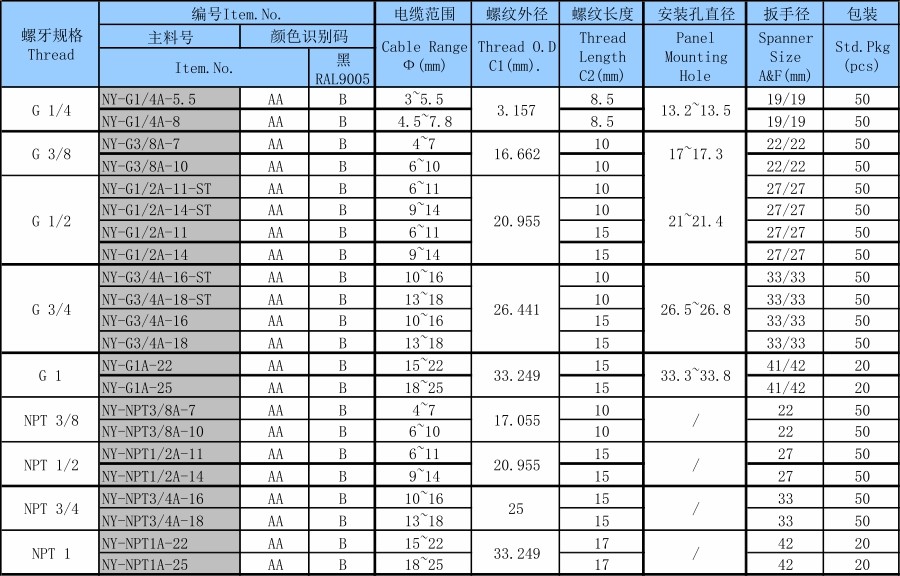

? Thread Type :G ( PF ) and NPT.

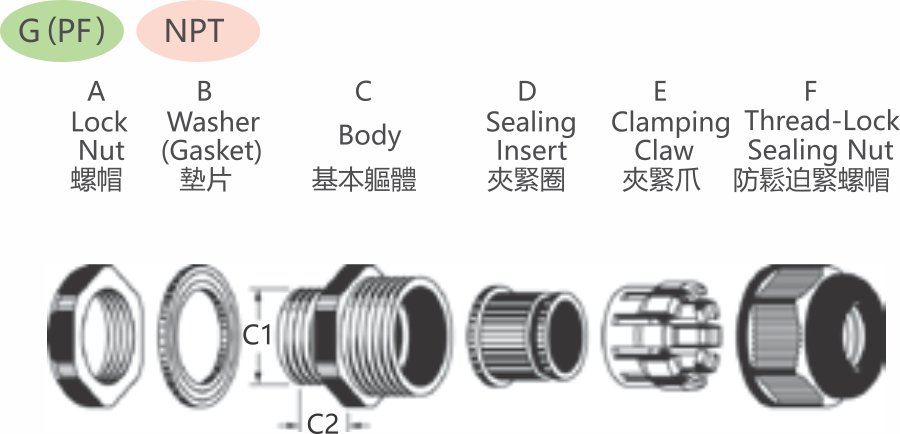

? Material Data :Acid / Alkali proof thermoplastic polymer for A.C.E,F parts.

Acid / Alkali proof rubbers for B.D parts.

UV ( Irradiance 340 nm ) exposure is performed by using a xenon-arc weatherometer for 1000 hours and intermittent exposure to water spray.Our black cable glands are suitable for outdoor use have been subjected to UV light exposure and water immersion same as UL746C (f1) rating.

? IP Protection :IP68 - 5 bar.

? Working Temp. :- 40 °C to 100 °C ( - 40 °F to 212 °F ).

? Application :The acid / alkali proof cable gland is specially designed to prevent strong acid corrosion from the manufacturing processes such as in the PCB,FPD, Photovoltaic, Chemical and Pharmaceutical industry, etc. These refined cable glands with corrosive resistance and with Yongcun special designs from the multiple sizes of bodies & sealing inserts provide str ng strain relief, watertight and airtight abilities over an entire cable range,which are the best cable entry system for the acid-proof demanded devices, machines and equipment.

 Contact us for designing & ordering different sealing hole patterns with varying diameters & other extended gland sizes. ( Sealing Inserts are not sold separately )

 Yongcun sealing inserts are available in split versions for mounting wires with pre-assembled terminals or connectors. ( Minimum order quantity is required )

 The Gaskets should be avoided to touch pertoleum-based fluids, mineral oils and solvents, aromatic hydrocarbons.

 For product property & chemical resistance informations, please click here for reference.

 The Washer ( Gasket ) and Lock Nut are all included in each cable gland, this saves additional ordering work and storage locations.
