? Thread Type :Metric, PG, G ( PF ) and NPT

? Material Data :Brass nickel-plated ( JIS C3604 / DIN CuZn39Pb3 / ASTM C37800 ) for A.C.F parts  ;  Nylon PA 66 for E part.

Weather-resistant EPDM rubbers for B.D parts.  ( NBR rubber is optional for oil-resistance applications )

? IP Protection :IP68 - depending on the less differences between cable diameters & sealing-hole openings. ( Less is Better )

? Working Temp :- 40 °C to 105 °C ( - 40 °F to 221 °F ).  Short-Term to 160 °C ( 320 °F ).

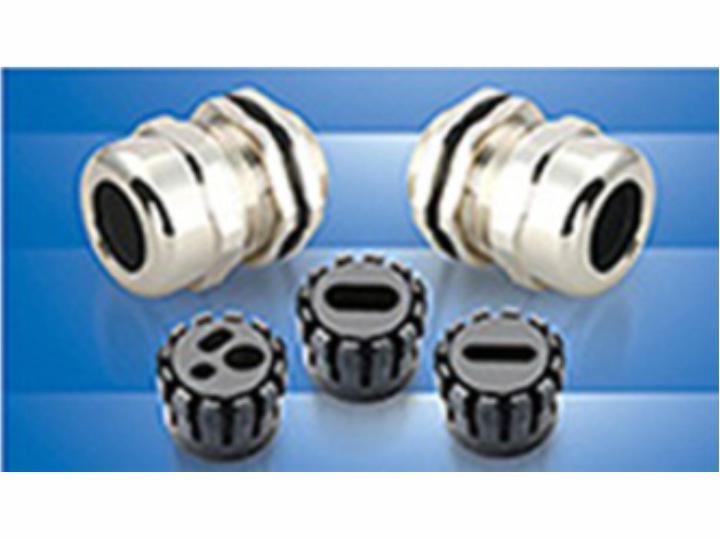

? Application :From Yongcun’s widest variety choices of bodies & multi-hole inserts, no need to use one gland for each wire, so the space of wire entry can be reduced and minimize costs & working time. The brass cable gland provides the excellent mechanical properties for outdoor / indoor applications.

 Contact us for designing & ordering different sealing hole patterns with varying diameters & other extended gland sizes. ( Sealing Inserts are not sold separately )

 Yongcun sealing inserts are available in split versions for mounting wires w th pre-assembled terminals or connectors. ( Minimum order quantity is required )

 The Washer ( Gasket ) and Lock Nut are all included in each cable gland, this saves additional ordering work and storage locations.
