Flame Retardant Stainless Steel Cable Glands

? Thread Type:G ( PF ) and NPT.? Material Data : Standard in Stainless Steel A2 ( DIN 1.4305 / AISI 303 ) for A.C.F parts. Contact us for ordering Stainless Steel A4 ( 1.4404 / AISI 316L ).PA 66 ( U...

在線咨詢

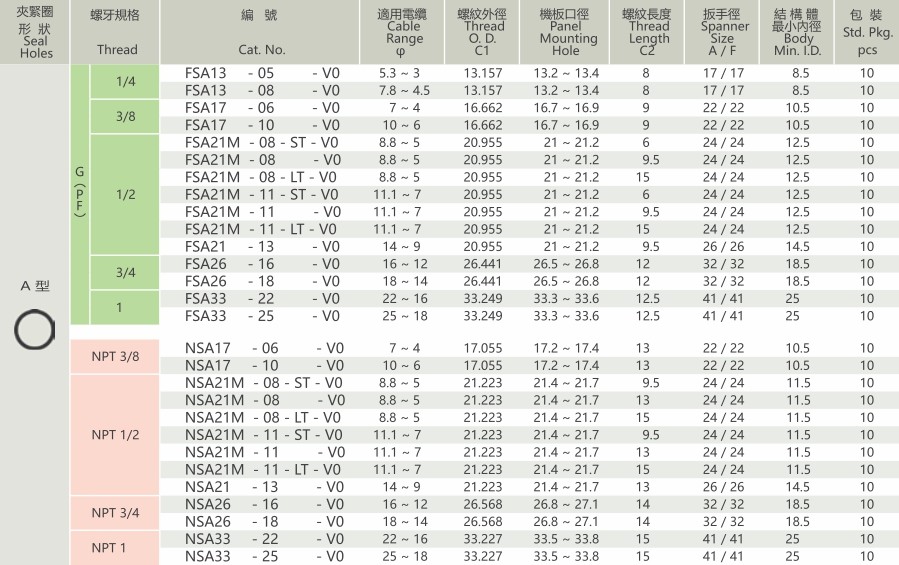

? Thread Type:G ( PF ) and NPT.

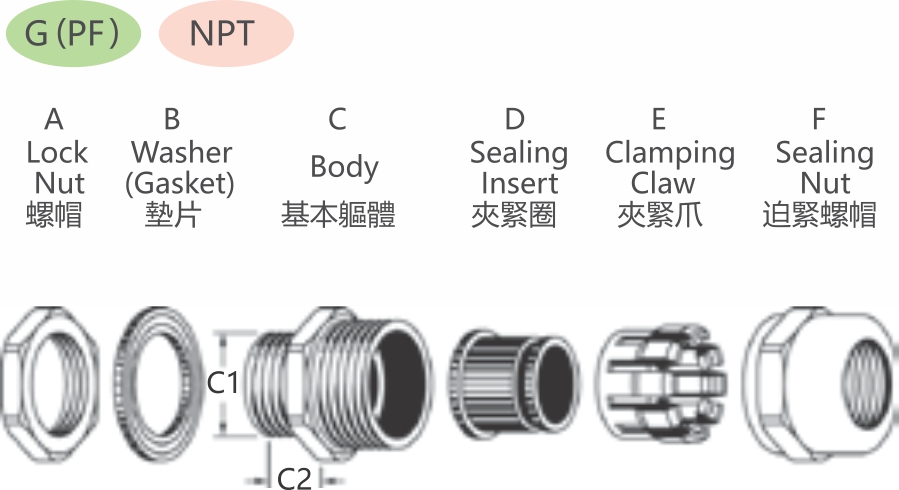

? Material Data : Standard in Stainless Steel A2 ( DIN 1.4305 / AISI 303 ) for A.C.F parts.  Contact us for ordering Stainless Steel A4 ( 1.4404 / AISI 316L ).

PA 66 ( UL 94V-0 ) for E parts  ;  Flame-Retardant & Weather-Resistance Rubbers for B.D parts.

? IP Protection :IP68 - 5 bar.

? Working Temp :- 40 °C to 105 °C ( - 40 °F to 221 °F ).  Short-Term to 160 °C ( 320 °F ).

? Application :With the highest requirements for stability & extremely flameproof protection under tougher conditions, the higher strength & rustproof stainless steel with the special flame-retardant gaskets & clamping units are adopted for producing these special cable glands to protect them from corrosion and flame. In addition, the unique design from Yongcun’s special sealing & clamping system provides strong strain relief, waterproof and airtight abilities over the entire cable range. This special safety gland provides unmatched & integrated performance on the outstanding mechanical properties with the highest flameproof protection which is suitable for used in outdoor / indoor cable entry applications with higher human & property protection in public buildings, store houses, undergrounds, tunnels, aeration systems, ships and supply installations, etc.

 Contact us for designing & ordering different sealing hole patterns with varying diameters & other extended gland sizes. ( Sealing Inserts are not sold separately )

 Yongcun sealing inserts are available in split versions for mounting wires w th pre-assembled terminals or connectors. ( Minimum order quantity is required )

 The Washer ( Gasket ) and Lock Nut are all included in each cable gland, this saves additional ordering work and storage locations.
