Flex Protecting Brass Cable Glands

? Thread Type:Metric, PG, G ( PF ) and NPT.? Material Data : Brass nickel-plated ( JIS C3604 / DIN CuZn39Pb3 /ASTM C37800 ) for A.C.F parts ; Nylon PA 66 for E part.Weather-resistant EPDM rubbers fo...

在線咨詢

? Thread Type:Metric, PG, G ( PF ) and NPT.

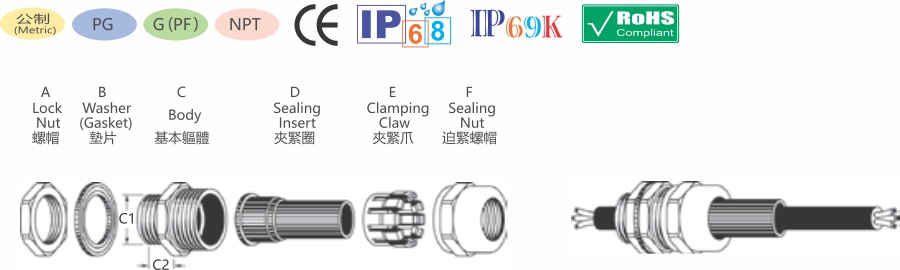

? Material Data : Brass nickel-plated ( JIS C3604 / DIN CuZn39Pb3 /ASTM C37800 ) for A.C.F parts  ;  Nylon PA 66 for E part.

Weather-resistant EPDM rubbers for B.D parts.  ( NBR rubber is optional for oil-resistance applications )

? IP Protection :IP68 - 5 bar.

? Working Temp :- 40 °C to 105 °C ( - 40 °F to 221 °F ).  Short-Term to 160 °C ( 320 °F ).

? Application :With Yongcun’s unique sealing insert which is longed to protect cable bending is made of very hard weather-resistance material. This smart design provides an outstanding cable bending protection and keep cable away from the environment influences ( such as UV radiation or aggressive media ) suitably to mounting cables with male / female connectors, or mounting flexible cables on the hand-held equipment and moving machine parts. In addition, the gland is constructed with high quality nickel-plated brass body and the unique sealing & clamping units which provide excellent mechanical properties and outstanding strain relief & watertight performances over the entire cable range which is suitable for used in outdoor / indoor cable entry applications with flex & twist safety features for electrical / electronics devices, telecommunications, wireless ODUs,power supplies, distributors, traffics, junction boxes, inverters / converters, charger controls for hybrid vehicles, lightings, signals, surveillance cameras, measurings, sensors, installations and any kinds of equipments.

 Contact us for designing & ordering different sealing hole patterns with varying diameters & other extended gland sizes. ( Sealing Inserts are not sold separately )

 The Washer ( Gasket ) and Lock Nut are all included in each cable gland, this saves additional ordering work and storage locations.
